FEATURES:
· Reads 2D and Linear Barcodes
· Reads 2D types PDF-417 & Code 16K
· High Scan Rate - 200 scans/sec.
· Keyboard Wedge, USB or RS-232
· Wide Reading Window (up to 4 in.)
· Bright Aiming Line
· ASCII Translation Table
· Reads All Common Linear Barcodes
· Easy Configuration with Barcode Menus
· Easily Replaceable Cable
· Installation and Configuration Manual
· Price: $159.00
Or Call 315-252-3741 8AM to 5PM Eastern
|
 |
|
DESCRIPTION:

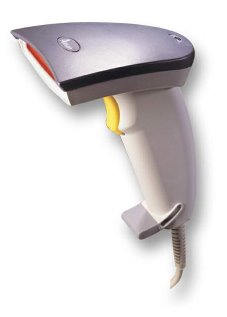

The AS8210 Series scanners have the ability to read two dimensional codes, in addition to all standard linear barcodes. The unit will read PDF417 and
Code 16K. There are three standard interfaces, Keyboard Wedge, USB and RS-232.
The unit is housed in a high-impact ABS plastic case, and can sustain a 1 meter
drop to a concrete surface. It will read codes with narrow bar widths of 0.004" or larger, and code widths of up to 4 inches (see Specifications). The scan rate is 200 scans per second.
TYPICAL APPLICATIONS:
The Keyboard Wedge Model is normally used to add a barcode "front end" to existing applications. If these applications normally accept input from the keyboard, this scanner enables use of barcodes without any software modification. Data from the scanned barcodes appears as though it was entered on the keyboard. The USB Model performs identical to the Keybaord Wedge Model, except it connects through the USB port. The RS-232 Model can connect to any device that normally takes a serial data input. Baud rates up to 38,400 are user selectable, as are 7 or 8 bit word lengths and parity. The Keyboard Wedge model features an ASCII character translation table, where the unprintable ASCII Characters can be translated into Function keys, Control and ALT sequences, and other special purpose keys on a standard keyboard. This feature can be used with full ASCII barcodes, such at Code 128 and Extended Code 39. Another special editing feature allows the insertion of up to 4 text strings within the barcode data.
|
|
SPECIFICATIONS:
Scan Rate: 200 scans per second.
Reading Distance: Zero to three inches
Resolution: Will resolve bar widths of 0.004" or wider.
Barcode Lengths: 0.007" narrow bar width - 3" width maximum.
0.010" narrow bar width - 3.75" width max.
0.013" narrow bar width - 4" width maximum.
PDF417 (0.01" narrow element) - 4" width maximum.
Configuration: Via Scanning Barcode Menus. Complete Manual
provided.
Barcodes Read: EAN/UPC (including supplements), Code 39,
2 of 5 Code (Including industrial and matrix.)
Codabar, Code 128, Code 11, Code 93,
and MSI/Plessey, UK/Plessey and Telepen.
PDF417 and Code 16K two dimensional codes.
Keyboards: PC/AT, PC/XT, PS/2 Models 25 & 30,
IBM 5550.
Keyboard Layouts: US, French, German, Spanish, Swiss, UK.
RS-232: Selectable baud rates from 300 to 38,4000. Seven
or eight bit data word. Odd, even,
or No Parity. RTS/CTS Handshaking.
Connectors: PC Keyboard Wedge can be adapted to 5 or 6-pin DIN.
RS-232 has a DB-9S connector wired as DCE
(will plug directly into PC Com Port).
Power: The Keyboard Wedge and USB models derive their power
from the PC. The RS-232 model requires
an external power supply, furnishing 5VDC±5% at
200 milliamps. Accessory power supply Model APS002
is available.
|
|
PART NUMBERS:
| Model | Description | Price Each |
| AS8211 | RS-232 - DB-9S Connector | US$159.00 |
| AS8213 | Keyboard Wedge - 5/6-Pin Din Connector | US$159.00 |
| AS8215 |
USB - Type A Connector |
US$169.00 |
| APS002 | Power Supply for AS8211 | US$10.00 |
|
|
